EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type

Brand Name : EDL

Model Number : 3625S-86A

Certification : ISO9001, ISO14001, RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiate

Payment Terms : T/T

Supply Ability : 30,000pcs/day

Delivery Time : 3-15days

Packaging Details : Carton

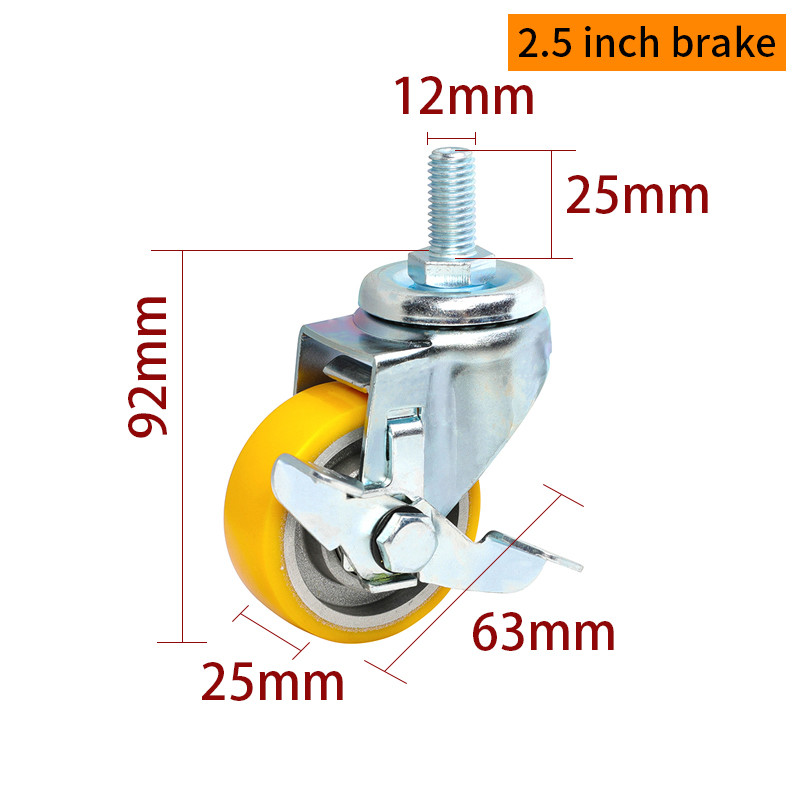

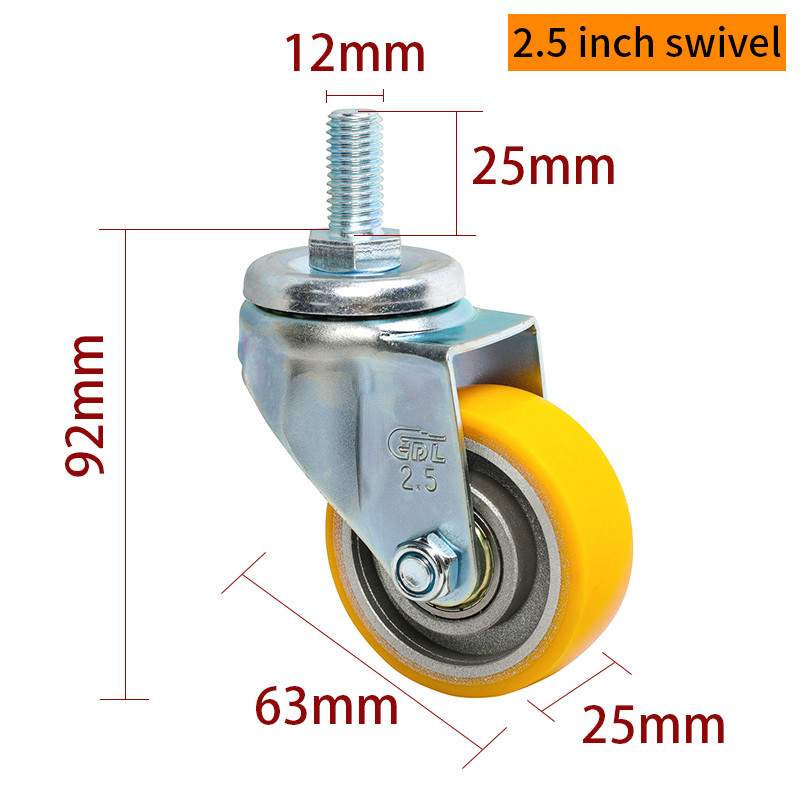

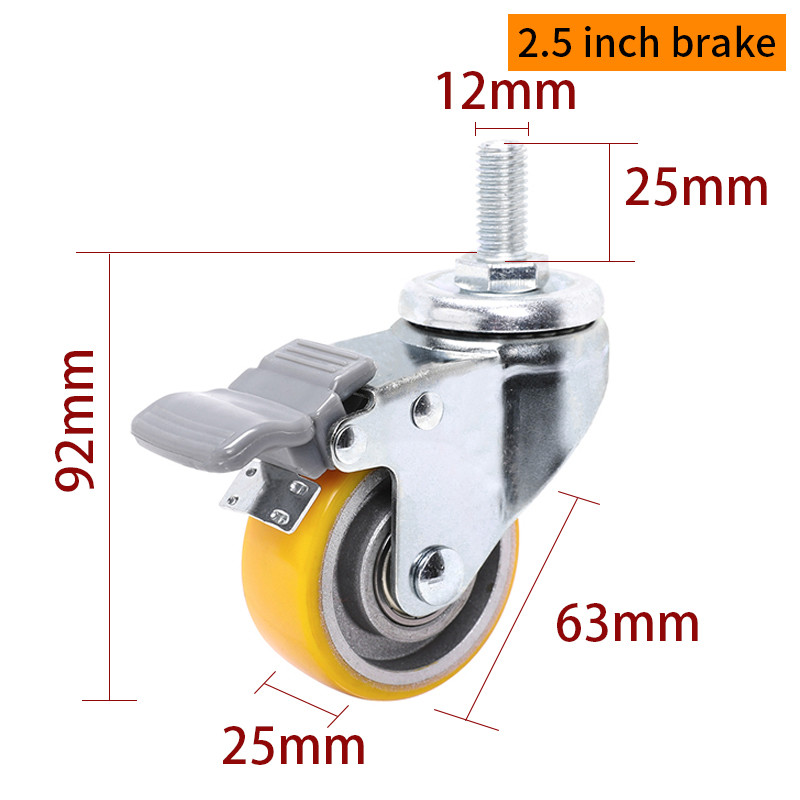

Wheel Diameter : 2.5inch(63mm)

Dynamic Load : 80kg

Tread Material : TPU

Core Material : Aluminum

Mounting Type : Swivel/Brake

Mounting Height : 92mm

Frame Material : Cold-Rolled Plate

Surface Treatment : Zinc Coating

Standard Threaded : M12X25

Bracket Thickness : 2mm

Bracket Width : 33mm

Wheel width : 25mm

Bearing : Double ball bearing

Tread Color : Grey

Applicable Temperature : -30℃～80℃

Tread Hardness : 92A

Name : Light Duty Casters

Contact Now

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type 3625S-86A


The EDL Light Duty 2.5-inch Threaded TPU Caster (Model 3625S-86A) is designed for reliable mobility and durability. Featuring a TPU tread with an aluminum alloy core, this caster provides excellent load-bearing capacity and enhanced strength while ensuring smooth and quiet movement. The high-quality aluminum core enhances durability and resistance to deformation under heavy loads. Equipped with a 2mm thick bracket, it ensures stability and longevity. Available in both dual plastic brake and side wheel brake options, this caster is ideal for workstations, carts, and light industrial applications, supporting a maximum load of 80kg.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
3625-86A 2.5" 63mm 25mm 33mm 80KG Aluminum

TPU

Double ball

bearing 6000

 -30℃～80℃ 92A

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake typeEDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake typeEDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake typeEDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type
