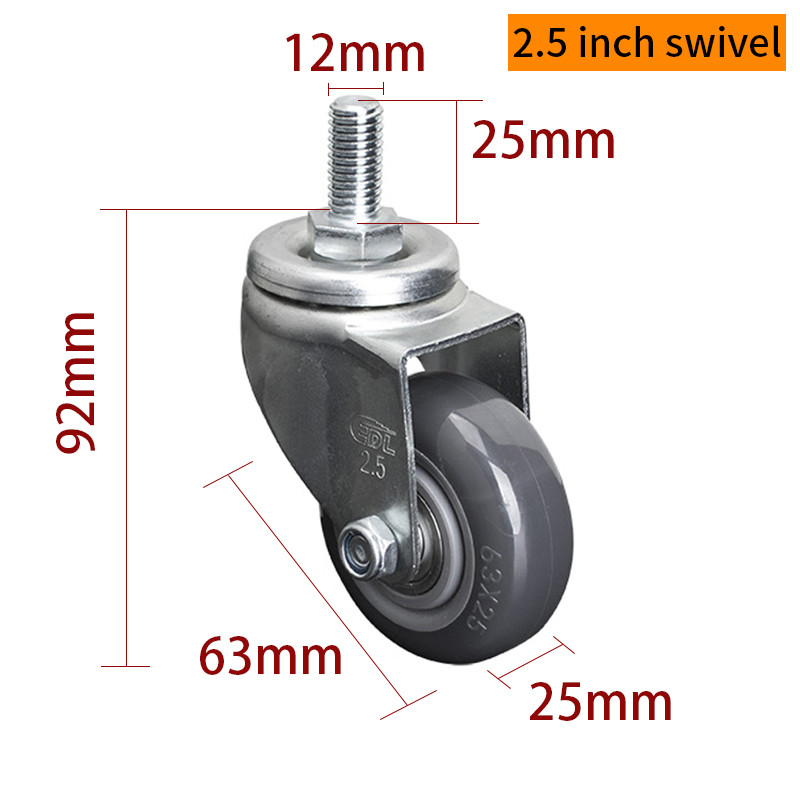

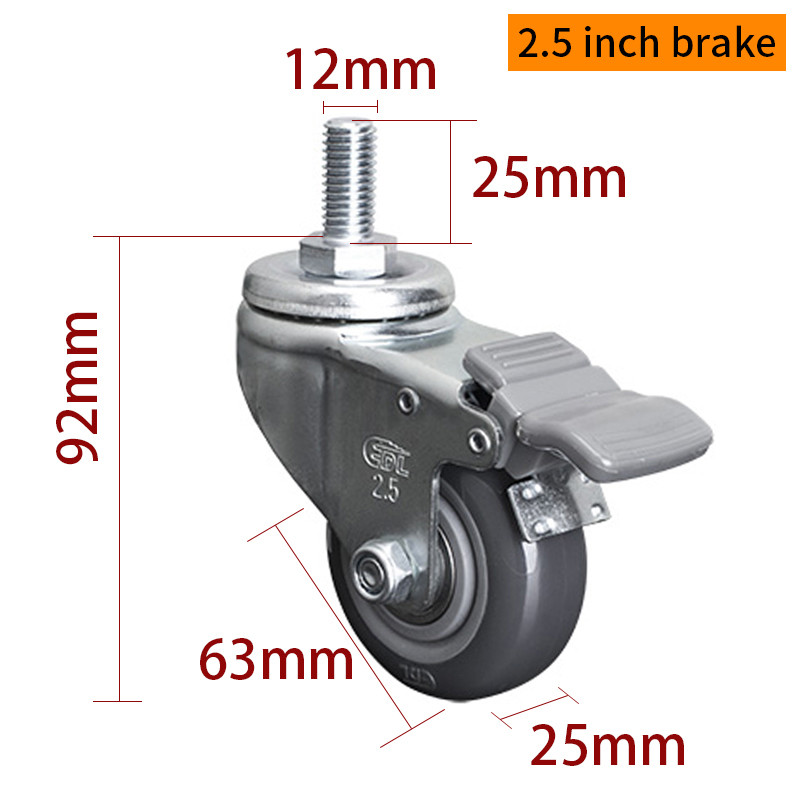

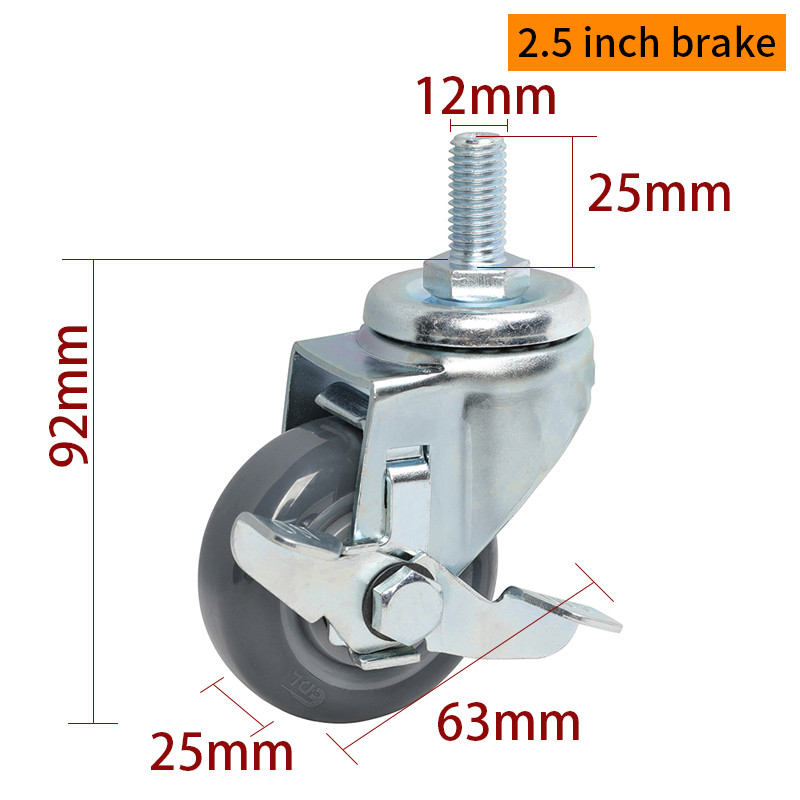

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type 3625S-76

Product Categories
Guangzhou EDL Casters Co.,Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type 3625S-76

Brand Name : EDL

Model Number : 3625S-76

Certification : ISO9001, ISO14001, RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiate

Payment Terms : T/T

Supply Ability : 30,000pcs/day

Delivery Time : 3-15days

Packaging Details : Carton

Wheel Diameter : 2.5inch(63mm)

Dynamic Load : 80kg

Tread Material : TPU

Core Material : PP

Mounting Type : Swivel/Brake

Mounting Height : 92mm

Frame Material : Cold-Rolled Plate

Surface Treatment : Zinc Coating

Standard Threaded : M12X25

Bracket Thickness : 2mm

Bracket Width : 33mm

Wheel width : 25mm

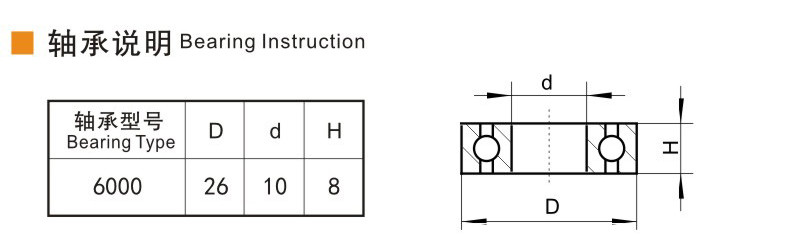

Bearing : Double ball bearing

Tread Color : Grey

Applicable Temperature : -20℃～80℃

Tread Hardness : 95A

Name : Light Duty Casters

Contact Now

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type 3625S-76


The EDL Light Duty 2.5-inch 80kg Threaded TPU Caster 3625S-76 is designed for versatile mobility in various light-duty applications. Made with high-quality TPU, the wheel provides excellent wear resistance, quiet operation, and floor protection, making it ideal for both commercial and residential environments. The sturdy 2mm thick steel bracket enhances strength and durability, while the threaded stem mount allows for easy and secure installation. This caster is available with dual plastic brake or side wheel brake options, offering enhanced stability and safety. With a maximum load capacity of 80kg, it is perfect for office furniture, display racks, household storage units, tool carts, and lightweight industrial trolleys.

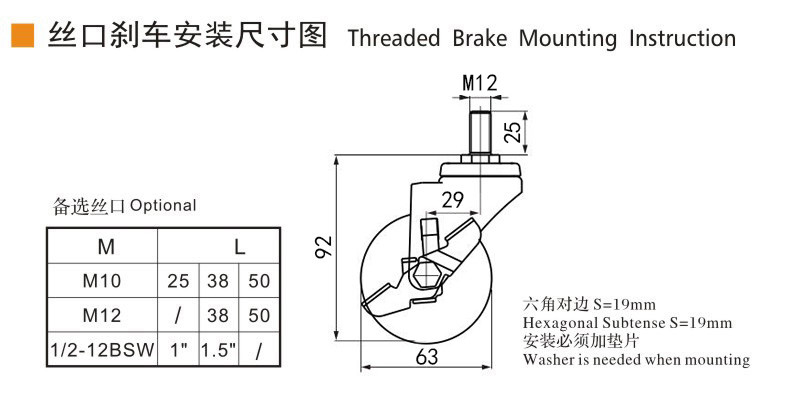

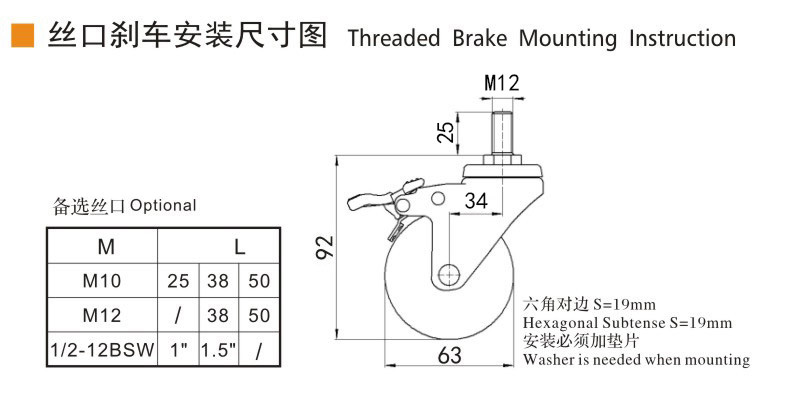

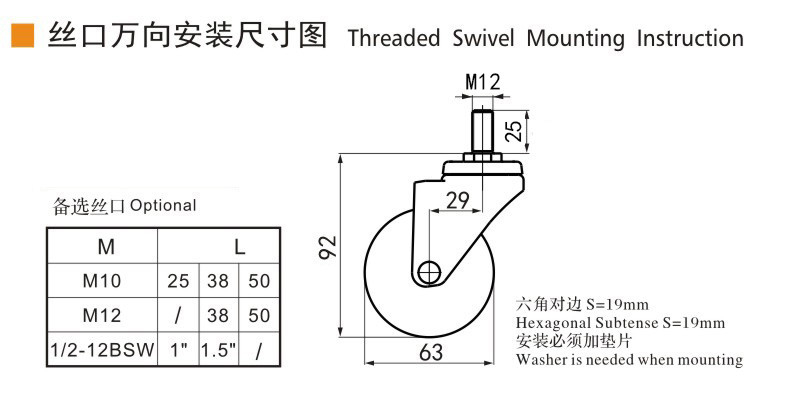

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
3625-76 2.5" 63mm 25mm 33mm 80KG PP

TPU

Double ball

bearing 6000

 -20℃～80℃ 95A

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type 3625S-76EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type 3625S-76

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type 3625S-76EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type 3625S-76

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type 3625S-76EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type 3625S-76

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type 3625S-76

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable

EDL Light Duty 2.5inch 80kg Threaded TPU Caster by Swivel and Brake type 3625S-76
