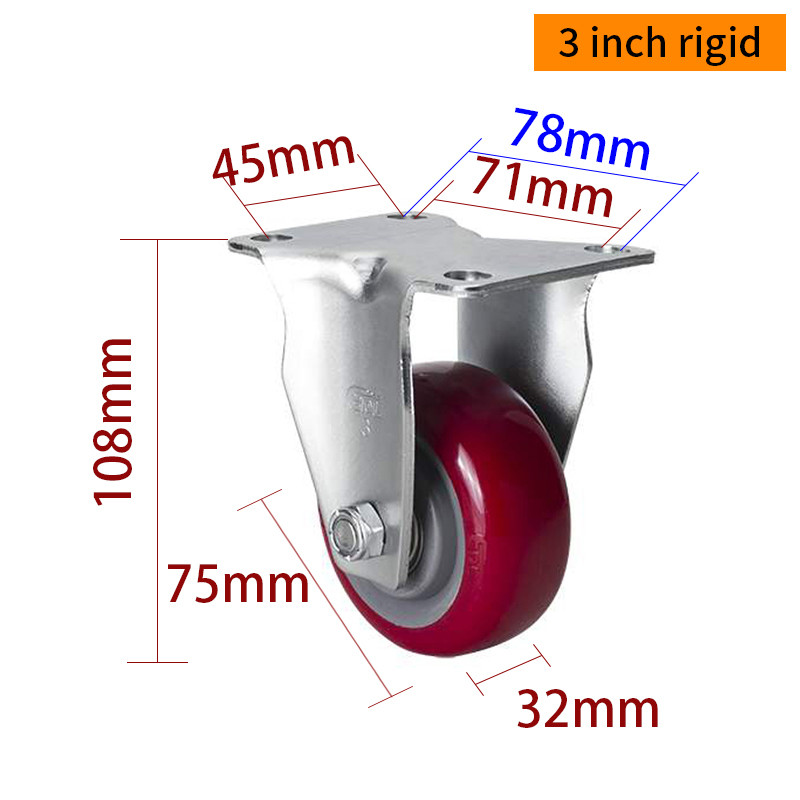

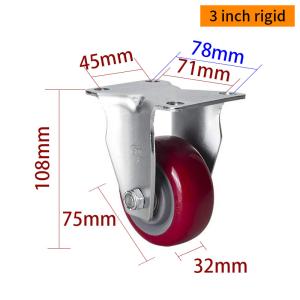

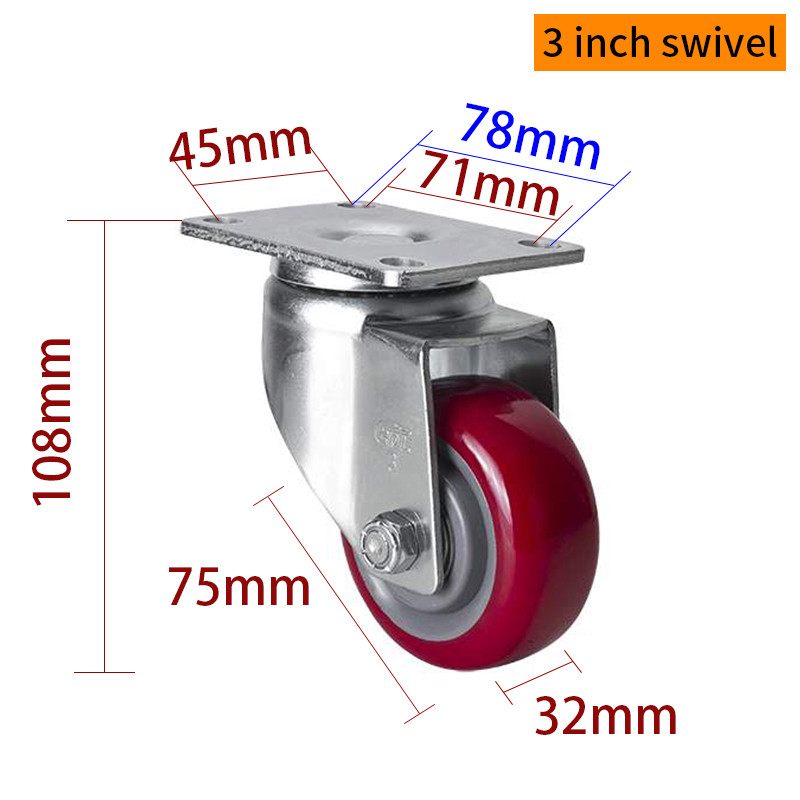

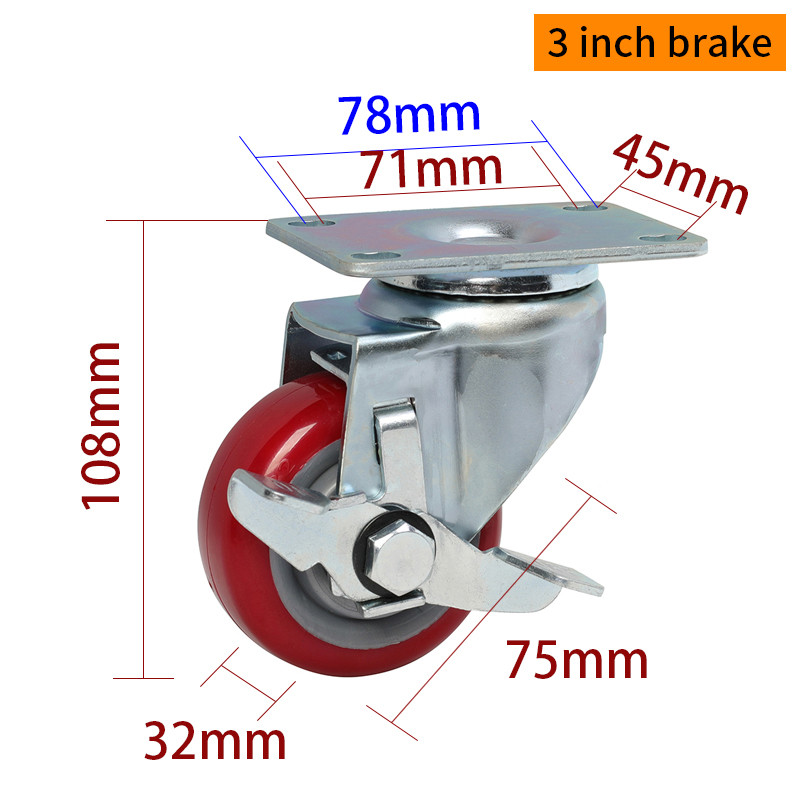

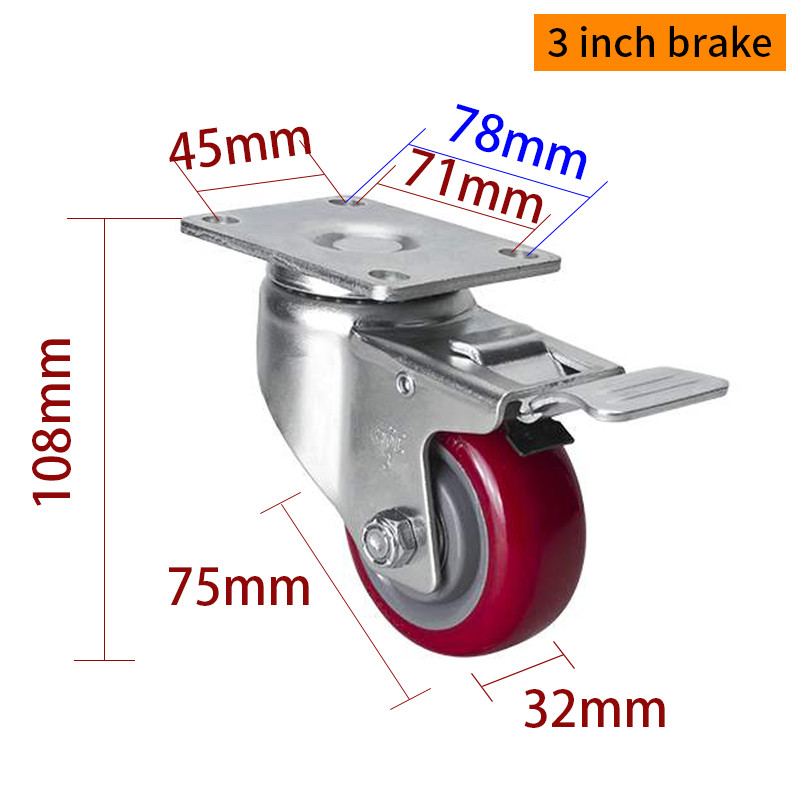

EDL Medium Duty 3inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type

Brand Name : EDL

Model Number : 503P-86

Certification : ISO9001, ISO14001, RoHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiate

Payment Terms : T/T

Supply Ability : 30,000pcs/day

Delivery Time : 3-15days

Packaging Details : Carton

Wheel Diameter : 3inch(75mm)

Dynamic Load : 150kg

Core Material : PP

Tread Material : TPU

Mounting Type : Rigid/Swivel / Brake

Mounting Height : 108mm

Surface Treatment : Zinc Coating

Frame Material : Cold-Rolled Plate

Plate Thickness : 4mm

Bracket Thickness : 2.5mm

Bracket Width : 41mm

Wheel width : 32mm

Bearing : Double ball bearings

Tread Color : Red

Applicable Temperature : -20℃～80℃

Tread Hardness : 95A

Name : Industrial Caster Wheels

Contact Now

EDL Medium Duty 3inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type 503P-86

EDL Medium Duty 3-Inch TPU Caster, 150kg Load Capacity, Plate Mount, Available in Rigid, Swivel, and Brake Types. Designed for medium-duty applications, this caster offers exceptional durability and smooth rolling performance. The 3-inch red TPU wheel provides excellent wear resistance, impact absorption, and floor protection, making it ideal for industrial equipment, carts, and workbenches. Equipped with dual bearings, it ensures smoother rotation, reduced rolling resistance, and enhanced maneuverability. The sturdy plate mount allows for easy and secure installation, ensuring long-term stability. This caster features two braking options: side brake and dual iron brake, enhancing safety and control. The rigid and swivel designs provide a balance of stability and flexibility, adapting to various operational needs. With a 150kg load capacity and a high-quality zinc-coated bracket, this caster maintains outstanding durability and reliability even under demanding conditions.

Wheel ltem No.Instruction

Wheel

Item No.

Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

Core

Tread

Bearing

Applicable

Temperature

Hardness

503-86

75mm

32mm

41mm

150Kg

TPU

Double ball

bearing 6001

-20℃～80℃

95A

EDL Medium Duty 3inch 150kg Plate TPU Caster by Rigid, Swivel and Brake type

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
