EDL Heavy Duty 6inch TPA Caster 850kg Load Plate Mount Rigid , Swivel and Brake 786-26

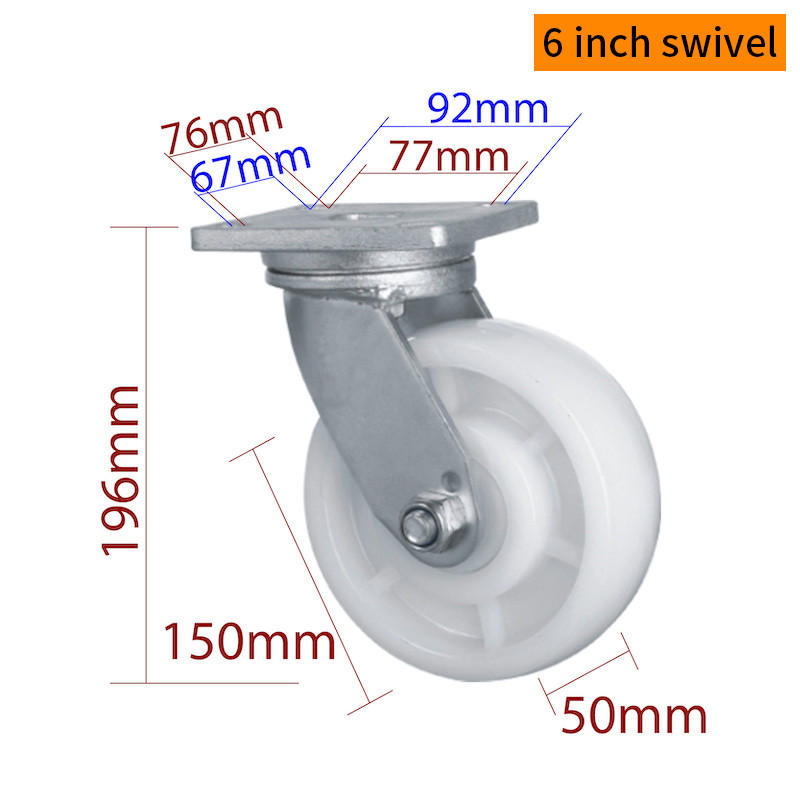

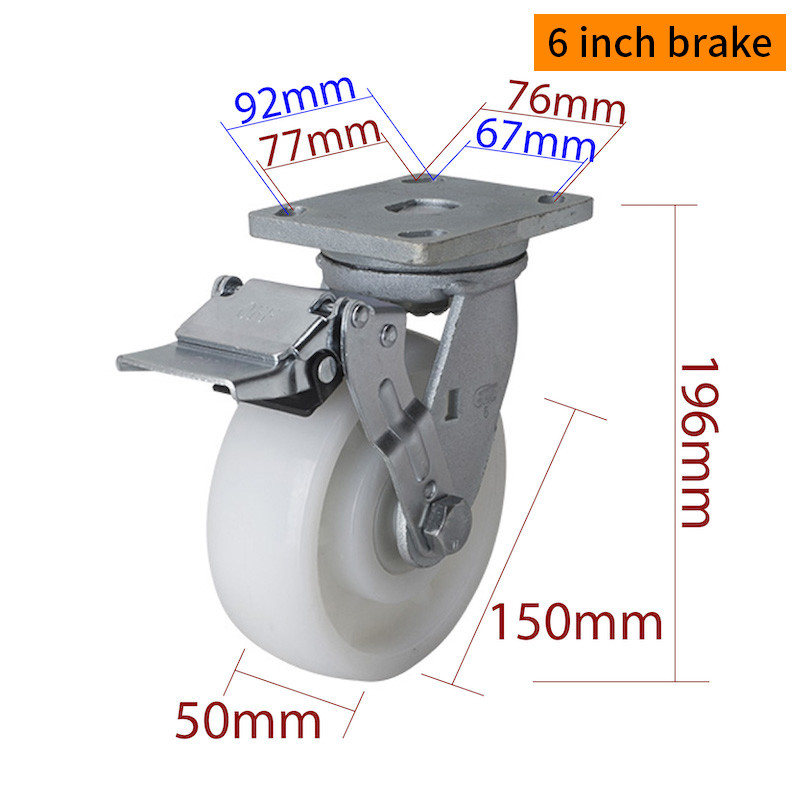

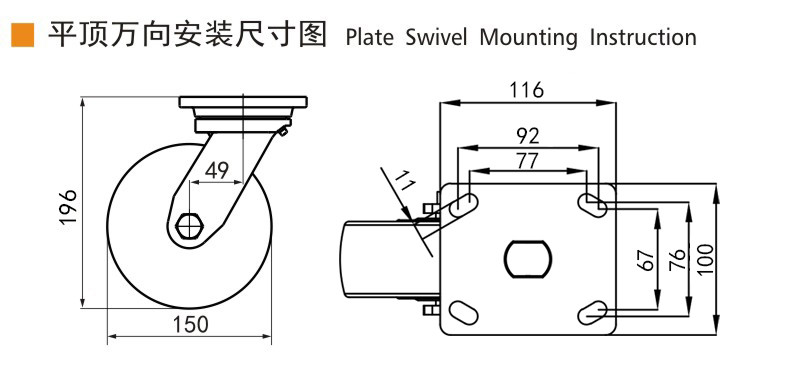

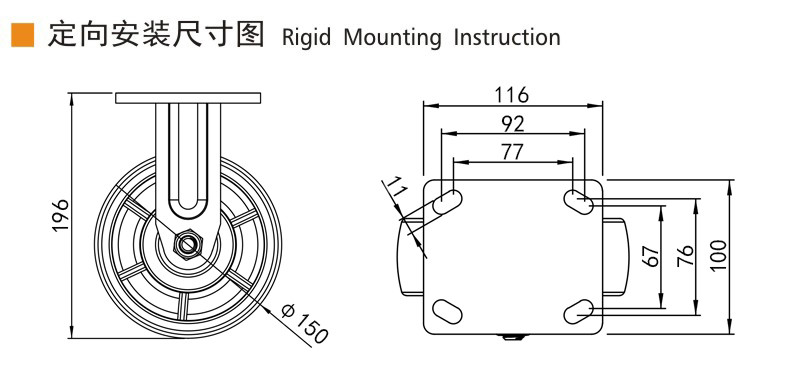

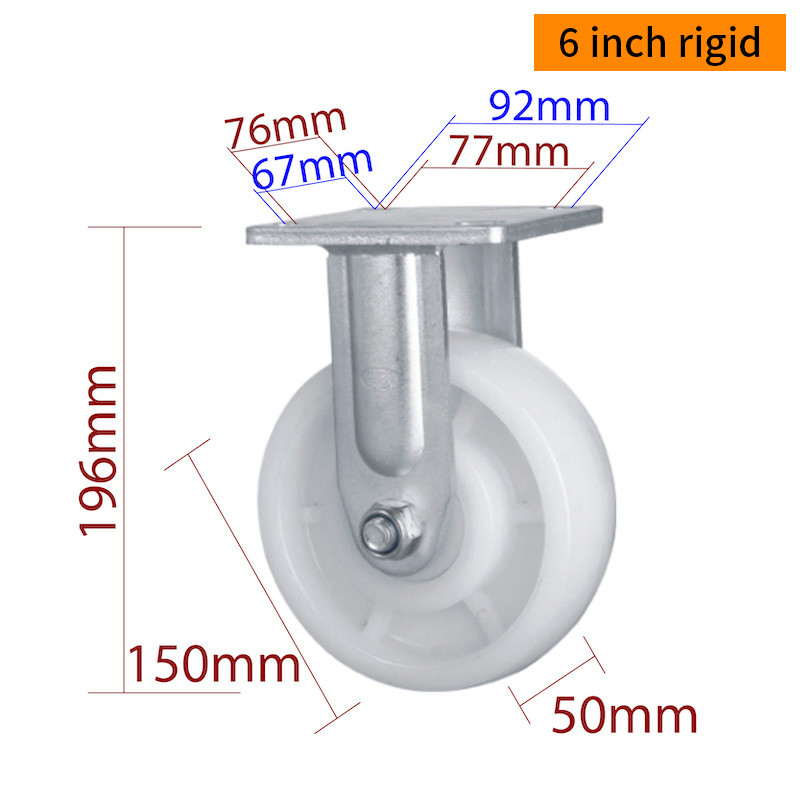

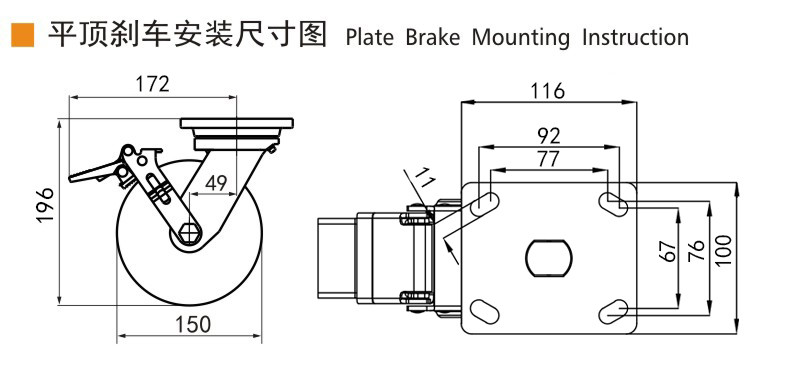

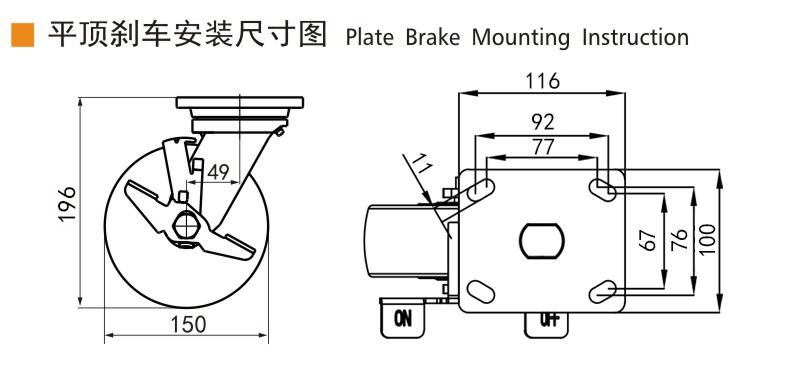

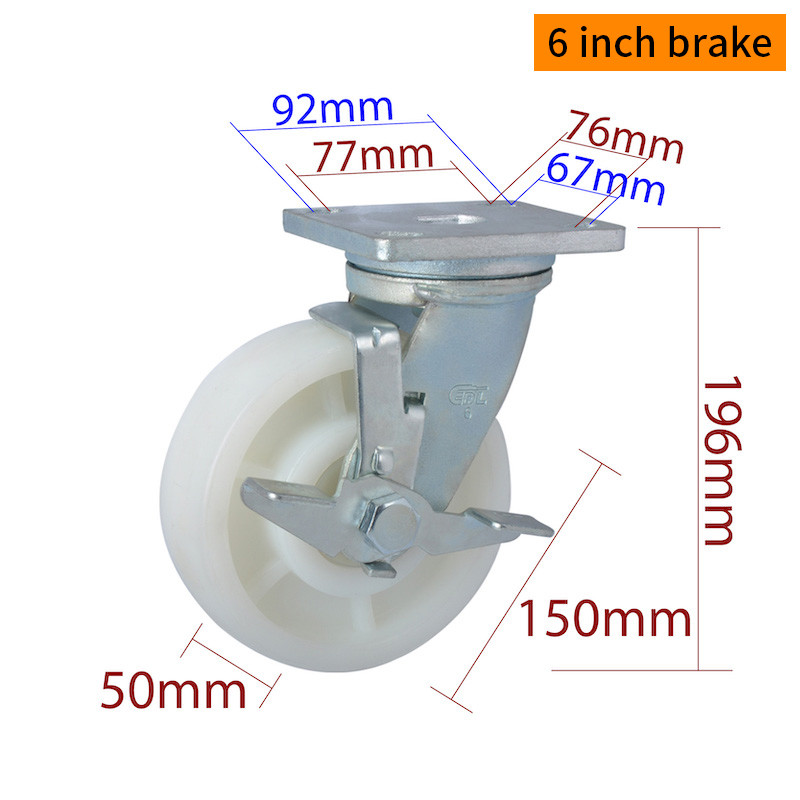

The EDL Heavy Duty 6-inch TPA Caster 850kg Load Plate Mount 786-26 is designed for high-performance applications requiring exceptional strength and temperature resistance. Made from white TPA, this caster withstands extreme temperatures ranging from -20°C to 120°C, ensuring reliable operation in various industrial environments. The 9.5mm thick mounting plate and 6mm thick hot-rolled steel bracket provide outstanding load capacity, supporting up to 850kg with superior stability. It is available in rigid, swivel, and brake configurations, with a wheel brake system that securely locks the wheel while allowing directional movement for controlled maneuverability. The reinforced structure and premium materials offer excellent wear resistance, impact absorption, and smooth rolling, making it an ideal solution for heavy-duty applications.
Wheel ltem No.Instruction
| Wheel Item No. | Size | Wheel Diameter | Wheel Width | Bracket Width | Load Capacity | Core | Tread | Bearing | Applicable Temperature | Hardness |

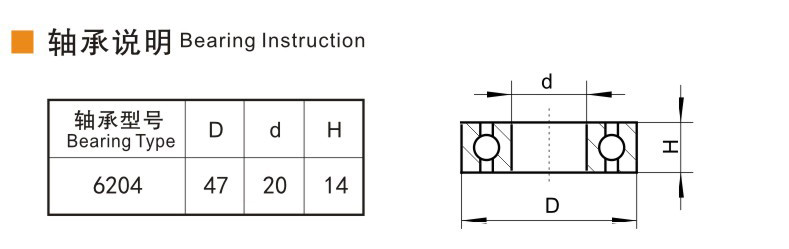

| 786-26 | 6" | 150mm | 50mm | 61mm | 850Kg | / | TPA | Double ball bearing 6204 | -20℃～120℃ | 67D |
FAQ:
Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.
Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.
Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.
Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.
Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
Product Tags:
|
|
150mm Castor Wheels , 6 Inch Swivel Caster Wheels With Brake 786-26 Images
|
